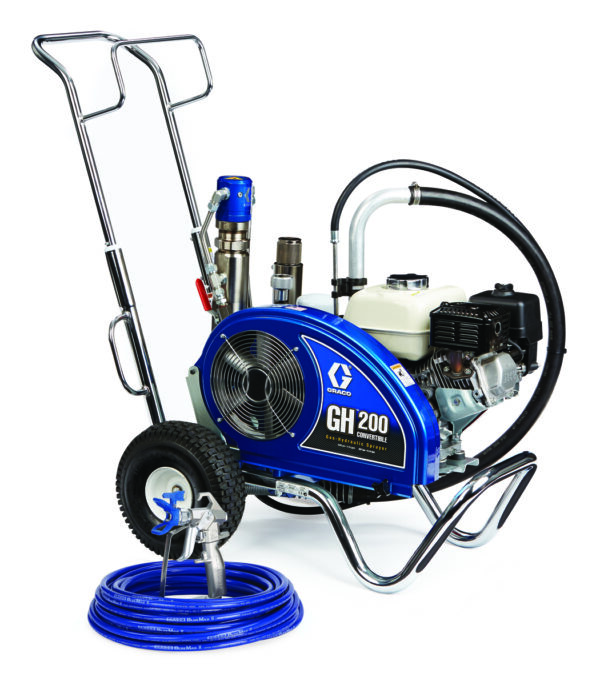

Graco GH 200 Petrol Driven Hydraulic Airless Sprayer Standard 24W925
Original price was: $12,430.00.$10,940.00Current price is: $10,940.00.
The GH 200 Convertible is the solution for medium to large jobs where proven hydraulic power is demanded to get the job done. With the ability to change out the pump lower and convert to electric power without tools, you can be assured that you have the most versatile sprayer on the market today.
The GH 200 Convertible is the solution for medium to large jobs where proven hydraulic power is demanded to get the job done. With the ability to change out the pump lower and convert to electric power without tools, you can be assured that you have the most versatile sprayer on the market today.
Features
- Endurance Chromex Piston Pump
- Lasts 2X longer than the next leading brand
- QuikChange pump design allows you to swap the pump easily on the job
- Faster cleaning with the QuikAccess intake foot valve
- High-Efficiency Hydraulic Motor
- Rock-solid performance time after time keeps you up and running
- Faster, more responsive changeover
- O-ring sealed fittings and form-fitted hydraulic lines prevent leaks
- Fewer moving parts mean less maintenance and longer life
- High-Capacity Cooling System
- Innovative design allows the pump to run cooler and more efficiently
- Hydraulic reservoir is tapered on the bottom
- Provides easier and more thorough fluid changes
- Cooling fins on reservoir deflect heat away from sprayer
- Honda® Engine
- Reliable, powerful & easy-to-start
- Oil alert shuts down engine to prevent damage if oil level drops too low
- Contractor Preferred
- Easy Out Pump Filter
- Easy maintenance & less clogging
- Exclusive inside-out filter design won’t collapse to ensure a quality finish
- Vertical design for less mess
- Heavy-Duty Prime Valve
- Maintenance-free design withstands high-pressure dumping
- Rugged, Durable Cart Design
- Thick chrome over welded steel withstands rugged environments
- Full pneumatic wheels absorb impacts and vibrations
- Retractable handle doubles as coiled hose storage
- Tilts on its nose for service in the field
- Electric Motor Capability
- Indoor and outdoor use
- Quickly swap the gas engine for an electric motor in seconds – without tools
- Electric motor kit sold separately
- Ready to Work
Includes everything you need to get spraying:- Contractor Airless Spray Gun
- RAC X SwitchTips and Guard
- 15m of BlueMax II Airless Hose
Technical Specifications
| Compatible Electric Motor Kits | 248949, 248950 (CSA) |
|---|---|
| Compatible Material | Acrylics, Dry Fall, Drywall Mud, Elastomer, Gypsum, Paint, Primer |
| Compatible Replacement Pump | 24W995 |
| Convertible | Yes |
| Engine Size (HP) | 5.5 |
| Features | Endurance Chromex Pump, High-Capacity Cooling System, Honda Engine, Easy Out Filter, Heavy-Duty Prime Valve, Durable Cart Design, Convertible |
| Fluid Inlet Size (cm) | 3.334 |
| Fluid Inlet Size (mm) | 33.34 |
| Fluid Inlet Thread Type | UN-2A |
| Fluid Outlet Size (cm) | 0.375 |
| Fluid Outlet Size (mm) | 3.75 |
| Fluid Outlet Thread Type | FNPT |
| Frame Configuration | Cart |
| Includes | Contractor Gun, RAC X LTX 517 Spray Tip, RAC X WideRAC 1231 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose, TSL 4 oz |
| Maximum Flow Rate (l/min) | 8.1 |
| Maximum Hose Length (m) | 92 |
| Maximum Sound Pressure Level (dB(A)) | 96 |
| Maximum Tip Size (cm) | 0.1194 |
| Maximum Tip Size (mm) | 1.1938 |
| Maximum Tip Size 1 Gun (cm) | 0.1194 |
| Maximum Tip Size 1 Gun (mm) | 1.1938 |
| Maximum Tip Size 2 Guns (cm) | 0.0864 |
| Maximum Tip Size 2 Guns (mm) | 0.8636 |
| Maximum Tip Size 3 Guns (cm) | 0.0686 |
| Maximum Tip Size 3 Guns (mm) | 0.6858 |
| Maximum Tip Size 4 Guns (cm) | 0.0584 |
| Maximum Tip Size 4 Guns (mm) | 0.5842 |
| Maximum Working Pressure (MPa) | 22.8 |
| Maximum Working Pressure (bar) | 228 |
| Maximum Working Pressure (kPa) | 22800 |
| Model | GH |
| Number of Guns | 4 |
| Outlet Paint Filter | Easy Out |
| Overall Height (cm) | 100.3 |
| Overall Height (mm) | 1003 |
| Overall Length (cm) | 104.1 |
| Overall Length (mm) | 1041 |
| Overall Width (cm) | 61 |
| Overall Width (mm) | 610 |
| Power Rating (HP) | 5.5 |
| Power Rating (W) | 4101.4 |
| Power Rating (cc) | 160 |
| Power Rating (kW) | 4.10 |
| Power Source | Gas Hydraulic |
| Product Series | Standard |
| Pump Mount Type | QuikChange |
| Pump Rod Type | Chromex |
| Pump Sleeve Material | Stainless Steel |
| Pump Type | Endurance |
| Series | 200 |
| Type | Airless Sprayer |
| Weight (kg) | 73 |
| Wetted Material | Acetal, Aluminium, Ceramics, Chrome Plating, Leather, Nylon, PTFE, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel |
| Weight | 100 kg |
|---|---|
| Dimensions | 140 × 74 × 115 cm |
